KX040-4 6-in-1 Blade
COMPACT EXCAVATORS
MSRP AS LOW AS
$0.00

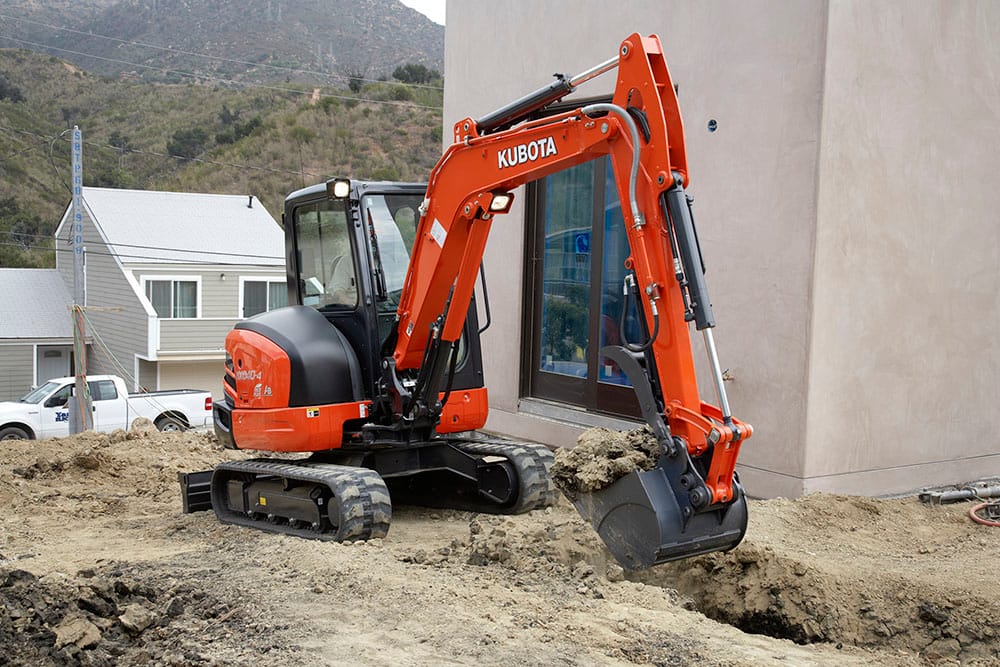

Digging isn’t easy, but the Kubota KX040-4 6-in-1 Blade will make it feel like it is. With 40.4 horsepower and a 5’ 10.9”-wide blade, the Kubota KX040-4 6-in-1 Blade is perfect for getting the job done. Kubota's hydraulic 6-in-1 Blade can be angled right and left, and now, tilted as well. This blade enables six different positions: neutral, floatup, left-end-up, right-end-up, leftend-forward and right-end-forward. This feature makes leveling and backfilling work incredibly easy, even on inclines and uneven terrain, making you more productive and more efficient. Kubota is the world’s #1 selling compact excavator for 20 years.*
*According to 2023 data from Off-Highway Research including all Kubota Group brand sales.
Special Offers
Stand Alone Financing Installment Program
Implement Stand Alone Financing
Customer instant rebate for Farmer Veteran Coalition members.
Farmer Veteran Coalition Rebate
*Not Available for National Accounts or Government Customers
LOW-RATE RENTAL BUSINESSES*
$0 Down, 0% A.P.R. for up to 48 Months or Save up to $6,000 on Construction Equipment!
Construction
Save up to $6,000 or pay 0% A.P.R. for up to 48 Months with 0% Down on KX AND U SERIES!
EXCAVATORS
Hydraulic 6-in-1 Blade
Kubota's hydraulic 6-in-1 Blade can be angled right and left – and now, tilted as well. This blade enables six different positions: neutral, float-up, left-end-up, right-end-up, left-end-forward and right-end-forward. This feature makes leveling and backfilling work incredibly easy, even on inclines and uneven terrain, making you more productive and more efficient.
*Available on KX040-4
Specifications
Arm Breakout Force, Lbs (kgf)
Auxiliary Hydraulics Flow Rate, G P M ( L P M)
Blade Height, In (mm)
Blade Width, Ft (mm)
Bucket Breakout Force, Lbs (kgf)
Crawler Length, Ft (mm)
Displacement (cu. In.)
Engine Model
Fuel Reservoir, Gal (l)
Ground Contact Pressure Psi, Kgf (cm2)
Horsepower (gross)
Hydraulic Oil Reservoir / System, Gal (l)
Min. Ground Clearance, In (mm)
Operating Weight, Lbs (kg)
Overall Height, Ft (mm)
Overall Length, Ft (mm)
Overall Width, Ft (mm)
Pump Capacity, G P M ( L P M)
Traveling Speed: High, Mph (kph)
Traveling Speed: Low, Mph (kph)
Arm Breakout Force, Lbs (kgf)
4112 (1865)
Auxiliary Hydraulics Flow Rate, G P M ( L P M)
17.2 (65) / 9.8 (37)
Blade Height, In (mm)
15.2in (385)
Blade Width, Ft (mm)
5ft 10.9in (1800)
Bucket Breakout Force, Lbs (kgf)
9535 (4325)
Crawler Length, Ft (mm)
7ft 1.6in (2175)
Displacement (cu. In.)
111.4
Engine Model
Kubota D1803-CR-TE4
Fuel Reservoir, Gal (l)
16.9 (64)
Ground Contact Pressure Psi, Kgf (cm2)
Rubber canopy/cab: 4.87 (33.6) / 5.02 (34.6), Steel canopy/cab: 4.95 (34.1) / 5.10 (35.2)
Horsepower (gross)
40.4
Hydraulic Oil Reservoir / System, Gal (l)
11.1 (42) / 19.6 (74)
Min. Ground Clearance, In (mm)
12.99in (330)
Operating Weight, Lbs (kg)
Rubber: 9900 (4490) / 10210 (4630), Steel: 10050 (4560) / 10360 (4700)
Overall Height, Ft (mm)
8ft 1.8in (2485) / 8ft 1.8in (2485)
Overall Length, Ft (mm)
16ft 8.2in (5085)
Overall Width, Ft (mm)
5ft 10.9in (1800)
Pump Capacity, G P M ( L P M)
24.4 (92.4)
Traveling Speed: High, Mph (kph)
1.8 (2.9)
Traveling Speed: Low, Mph (kph)
3.1 (5.0)
